CLF6045T-331M-D
Manufacturer:
TDK Corporation
Mfr.Part #:
CLF6045T-331M-D
Datasheet:
Description:

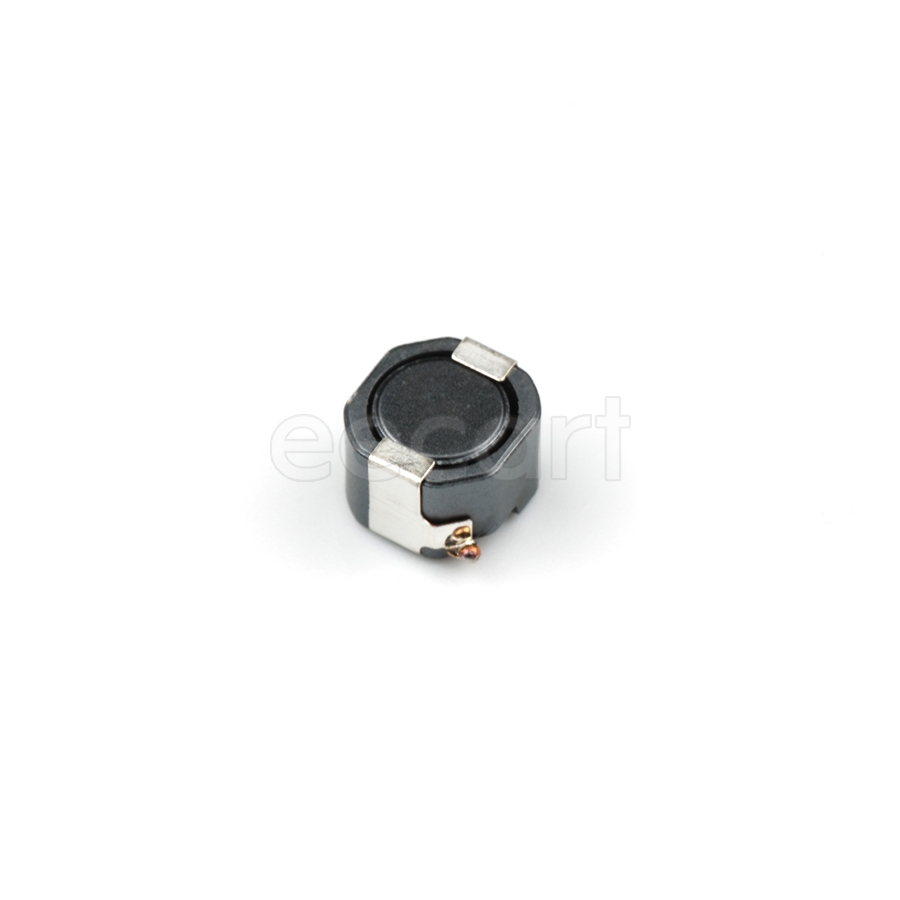

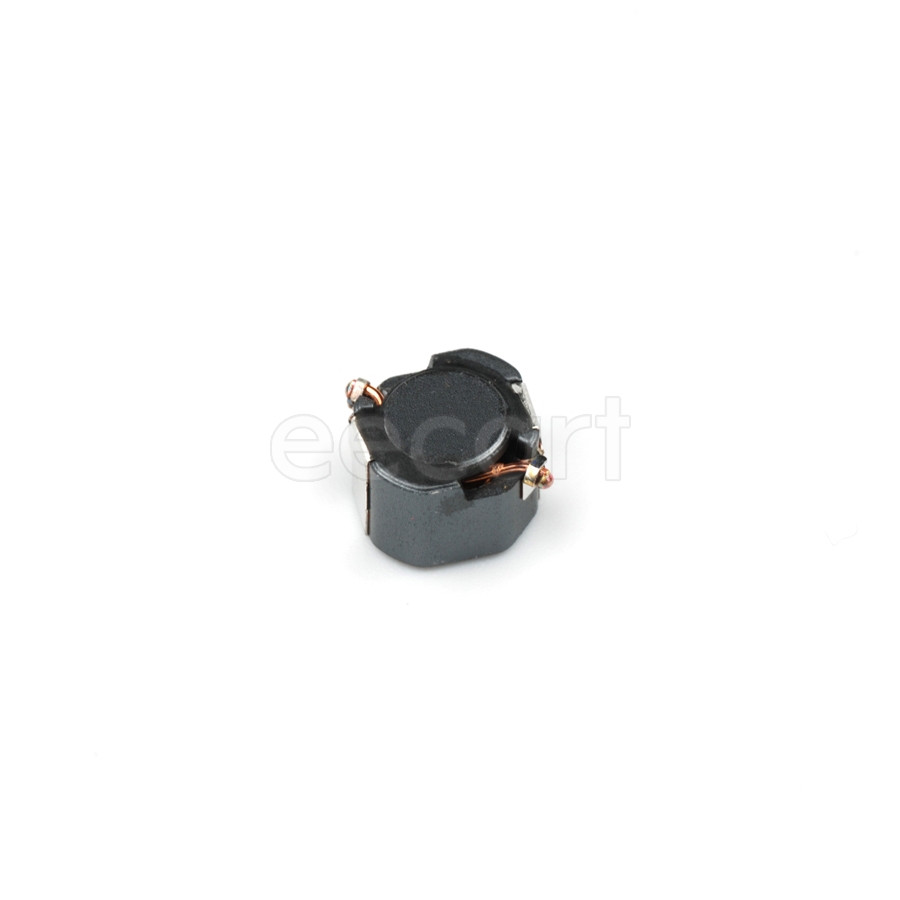

Fixed Inductors 6.20mmL×5.90mmW×4.50mmH SMD/SMT 330 µH 20 % 440 mA 970 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.5 mm |
| Length | 6.2 mm |
| Width | 5.8928 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 200 |
| Composition(Kit Type) | Wirewound |
| Height | 4.5 mm |
| Depth | 5.9 mm |
| REACH SVHC | No SVHC |
| Current Rating | 440 mA |
| DC Resistance (DCR) | 970 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Shielding | Shielded |
| Inductance | 330 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 440 mA |
| inductance tolerance | 20 % |
| Max DC Current | 350 mA |
| Saturation Current | 350 mA |
| RoHS | Compliant |
| Packaging | Reel |
| Type | Wirewound |
Stock: 195
Distributors
pcbx
pcbxUnit Price$0.92602
Ext.Price$0.92602
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.92602 | $0.92602 |
| 10 | $0.73786 | $7.37860 |
| 25 | $0.67121 | $16.78025 |
| 50 | $0.61058 | $30.52900 |
| 100 | $0.55542 | $55.54200 |
| 300 | $0.52624 | $157.87200 |
| 500 | $0.49858 | $249.29000 |
| 1000 | $0.46861 | $468.61000 |
